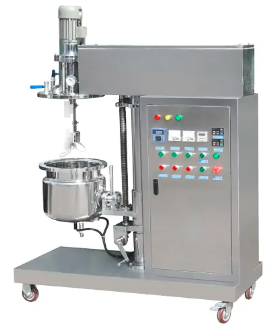

Homogeneous emulsifier - consisting of stator and rotor.Under the centrifugal force effect of high-speed rotating rotor, the material is sucked into the operating chamber from the axial direction in the upper feed area of the agitator head,

and under the centrifugal force, the material is thrown radially into the narrow and delicate gap between the stator and rotor and is subjected to strong mechanical and hydraulic shear, centrifugal extrusion, liquid layer friction, impact tearing and turbulence.

Material is emulsified by centrifugal impact and shear between stator and rotor.Material is continuously ejected from the radial direction at high speed, which changes the flow direction under the resistance of the material itself and the vessel wall. Together with this,

under the effect of upper and lower axial suction forces occurring in the rotor area, two intense upside and downside turbulences are formed.Material can be particulatized, emulsified, homogenized, mixed, even and dispersed by several cycles.

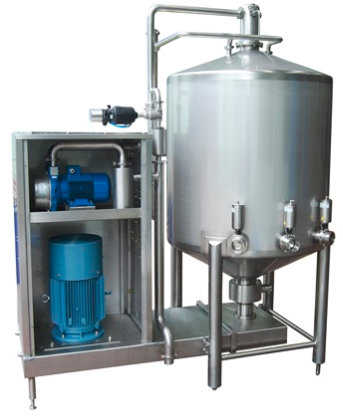

Vacuum unit - In vacuum environment, the raw material can be mixed sufficiently under the working liquid level in vacuum suction tank, and the air content in the material can be reduced effectively to avoid oxidation of the material. Therefore,

the homogenization and emulsification effect of vacuum unit is better.
