design principle：

The self-cleaning filter (scraper type self-cleaning filter) can automatically remove the particle impurities on the surface of the filter screen through efficient mechanical scraping, and automatically discharge the high concentration impurities in the machine through time / pressure difference control.

It can be continuously filtered on-line by a single machine without any filtering consumables and frequent manual cleaning. It is suitable for general and high viscosity liquid filtration.

When the traditional manual filter is used to filter the viscous material and the material with high content of sundries, it is often blocked. Customers are forced to choose large filter or carry out frequent back washing, which is characterized by large investment, heavy work and serious waste of materials.

The self-cleaning filter can easily solve this kind of problem, keep the filter element clean regularly all the time, discharge the waste liquid with high impurity concentration and small material waste.

The self-cleaning filter is gradually replacing the traditional manual filter in many fields, such as vibrating screen, bag filter, basket filter and some backwash self-cleaning filters, with its significant technical advantages and low operation cost.

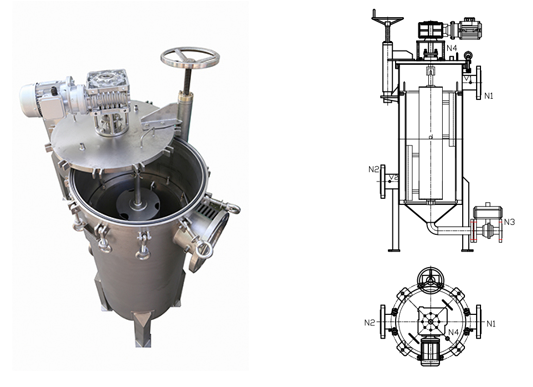

Operation mode: driven by the reduction motor, the scraper close to the screen surface rotates to scrape off the impurities on the screen surface. The impurities leave the screen surface and fall into the impurities collection cavity at the bottom of the filter along with the downward liquid. The drain valve opens

according to the set procedure to discharge the impurities.

Technical parameters:

Accuracy range: 20-3000 μ m;

Flow range: 10-200 m3 / h;

Working temperature: max.230 ℃

Wedge filter screen: steel wire with working pressure of less than 1 mm and less than 10 kg / cm2; steel wire with working pressure of less than 1.5 mm and less than 10-30 kg / cm2; steel wire with working pressure of more than 1.8 mm and more than 30 kg / cm2;

Filter body: CS \ stainless steel SS304 \ stainless steel SS316L.

Application Industry:

Water treatment water treatment, papermaking, petrochemical, biopharmaceutical, coating, ink, grease, food and beverage, etc.

Product features:

1. The surface seam width is accurate with small deviation of 5 μ M.

2. The main body is made of 304316l material with excellent corrosion resistance.

3. V-shaped gap, not easy to jam impurities, long-term stable flow.

4. The outer and inner surfaces are smooth, easy to be scraped off, and little abrasion to the scraper.

5. It can filter more difficult impurities, such as sludge impurities, soft caking impurities, etc.

6. The surface is specially hardened and wear-resistant, which can significantly prolong the service life.

7. High strength structure, the gap will not be deformed when the pressure difference rises.

8. Withstand high-strength positive and negative pressure.

9. Automatic 24-hour on-line continuous filtration, saving heavy filter element replacement and cleaning work.

10. It will not produce disposable filter consumables, effectively saving production and environmental treatment costs.

11. With the use of metal sheet scraper, the effect of scraping is better, which can avoid crushing impurities and significantly improve the ability to remove impurities.

12. Closed filtration can prevent the leakage of hazardous materials, which is conducive to safe production.

13. The filter pressure loss is very small, the flow is stable, energy consumption is saved, and it is conducive to the continuous stability of production.

14. The impurity concentration of discharged waste liquid is high and can be recycled to avoid the loss of high-value materials.

15. PLC control function: differential pressure cleaning, timing cleaning, manual cleaning, and differential pressure priority, and can be connected with the central control room; it can provide system over-voltage alarm, equipment fault and system fault self diagnosis prompt function.

16. Replace traditional bag filter, bucket filter, filter element filter, vibrating screen filter, plate and frame filter in many fields.
